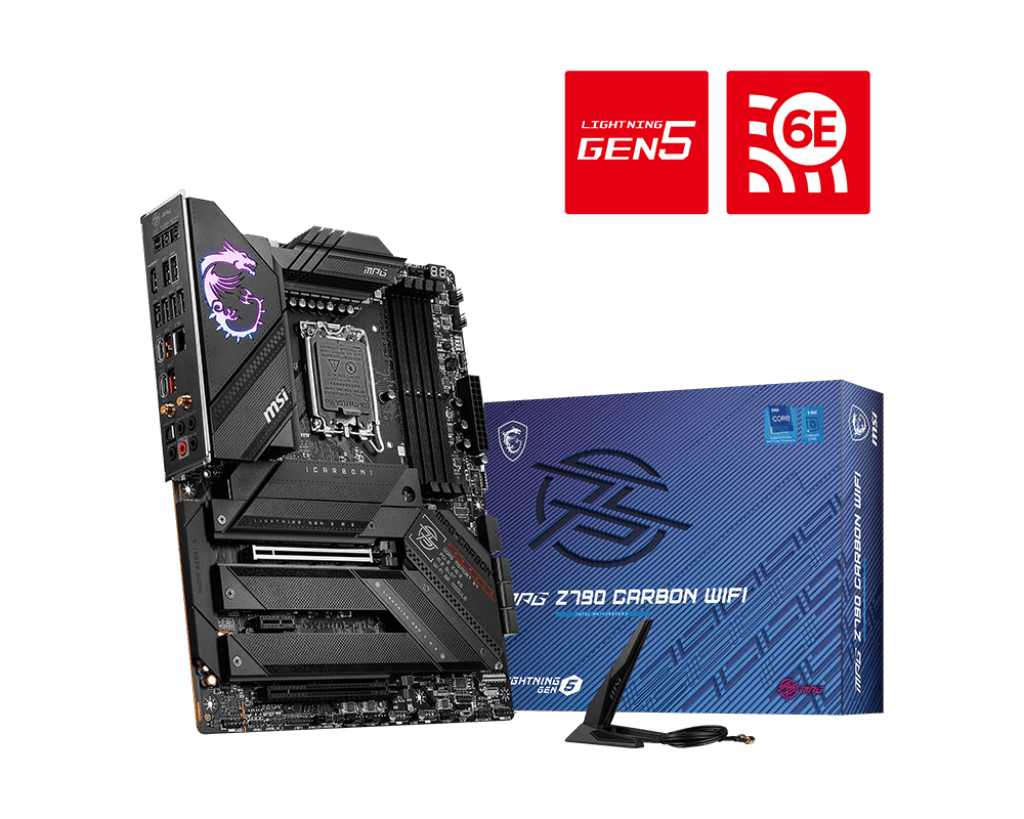

MOTHERBOARD MSI MPG Z790 CARBON WIFI

SOCKET

• LGA1700
  12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

CHIPSET

• Intel Z790

MEMÓRIA RAM

• 4x DDR5, Maximum Memory Capacity 192GB
  Memory Support 7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

FORMATO

• 1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  5x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x TBT connector (JTBT, supports RTD3)
  1x Tuning Controller connector(JDASH)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 3.2 Gen1 Type A ports
  1x USB 3.2 Gen 2×2 Type C ports

COMUNICAÇÕES

• Intel® Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax

  Supports Bluetooth® 5.3**, FIPS, FISMA

  * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

COMUNICAÇÕES

COMUNICAÇÕES

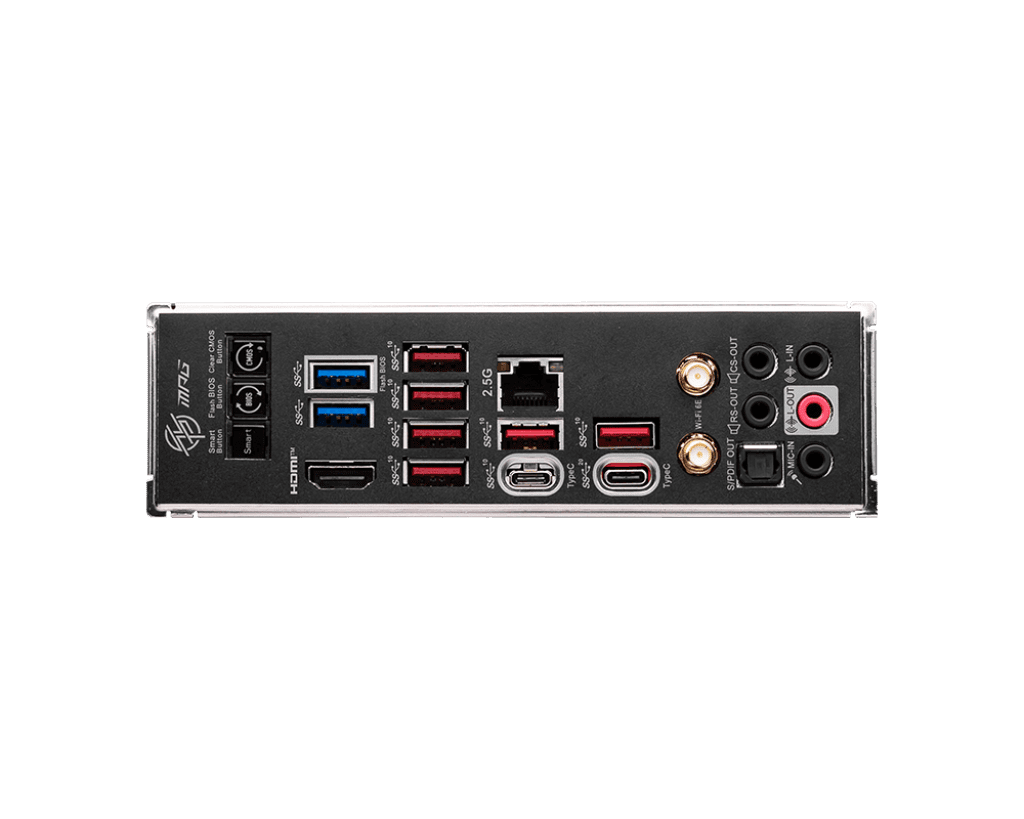

interface

• 4x USB 2.0 (Front)
  2x USB 3.2 Gen1 Type A (Rear)
  2x USB 3.2 Gen1 Type A (Front)
  6x USB 3.2 Gen2 Type A (Rear)
  1x USB 3.2 Gen2 Type C (Rear)
  1x USB 3.2 Gen2x2 Type C (Rear)
  1x USB 3.2 Gen2x2 Type C (Front)

Iluminação

• 1x EZ LED Control switch
  1x 2-Digit Debug Code LED
  4x EZ Debug LED
