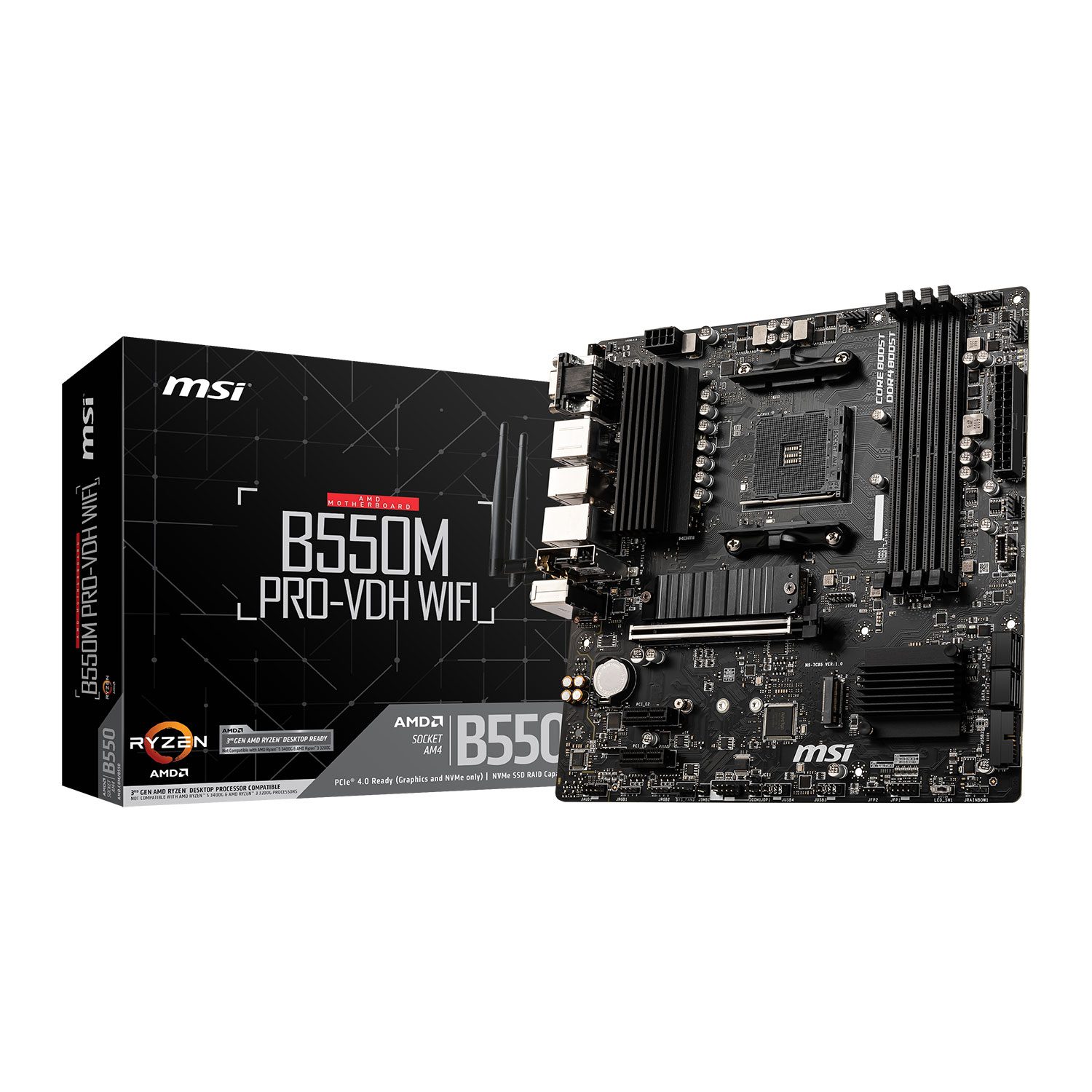

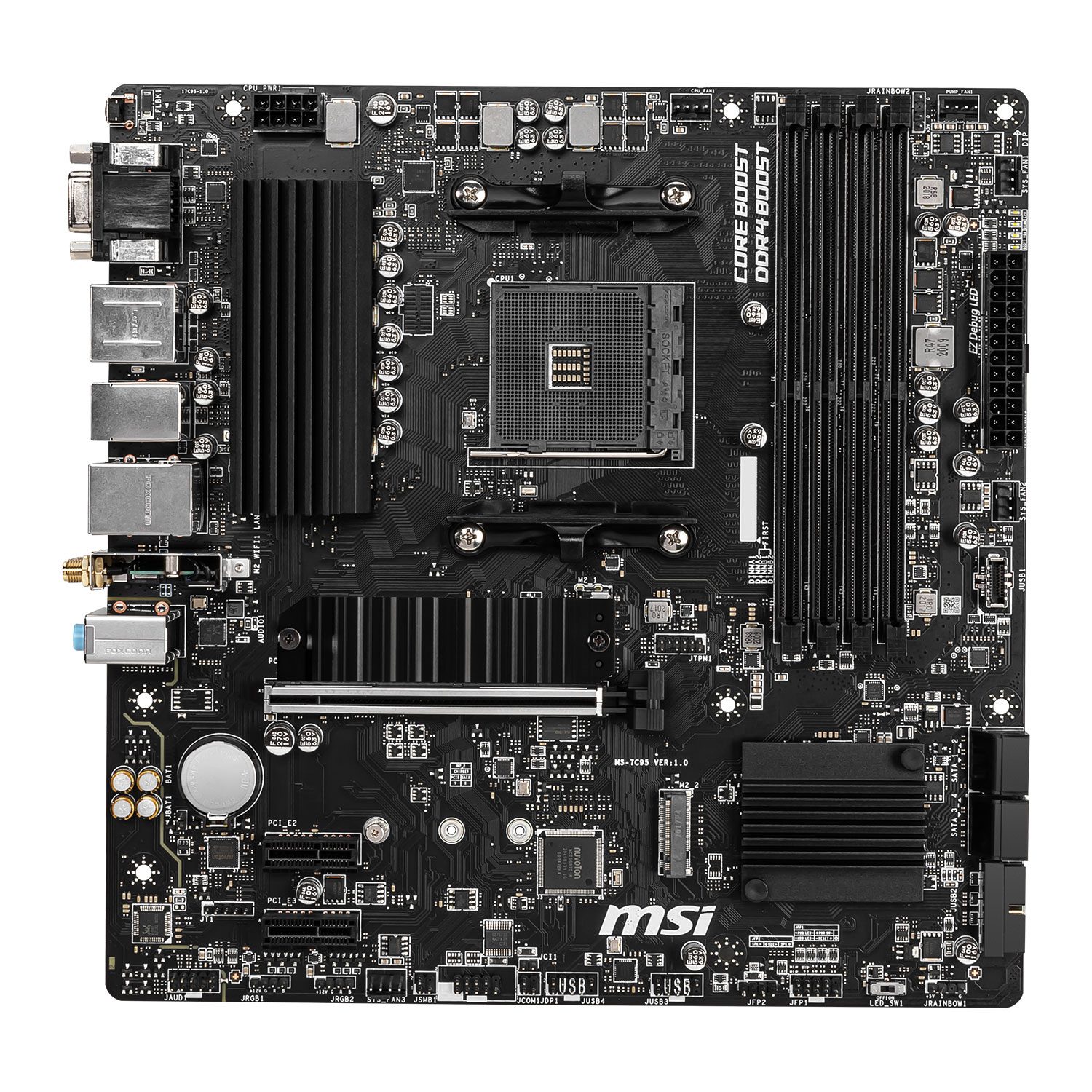

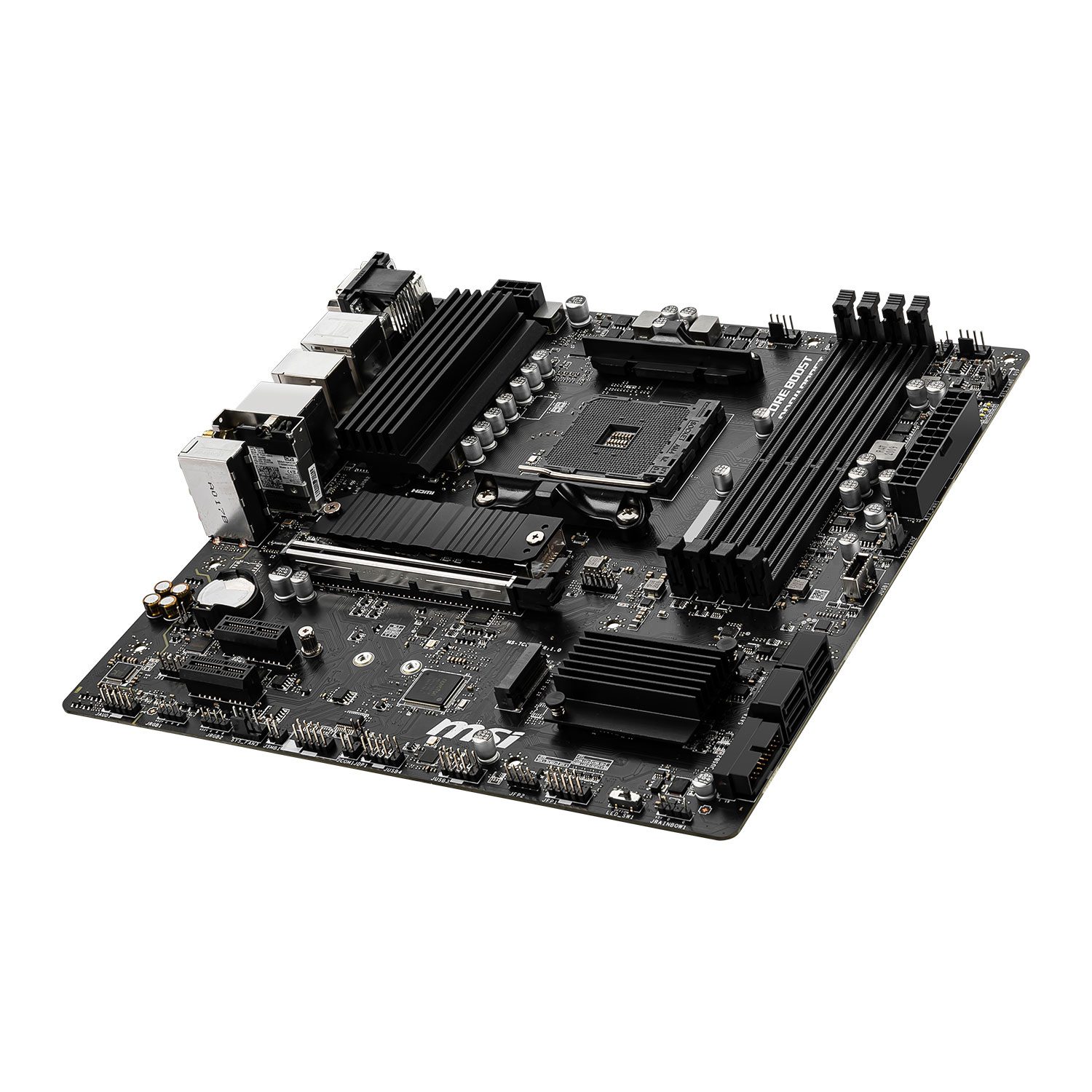

Motherboard MSI B550M PRO-VDH WIFI

Socket

• AMD AM4

Chipset

• AMD B550

Memória RAM

• 4x DDR4 memory slots, support up to 128GB
• Suporta DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE

Slots de Expansão

• 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
• 2 x PCIe 3.0 x1 slots

Armazenamento

• 4x SATA 6Gb/s ports
• 2x M.2 slots (Key M)

Comunicações

• 1x Realtek® 8111HN Gigabit LAN
• Intel® Wireless-AC 3168
• Bluetooth 4.2

Áudio

• Realtek® ALC892 Codec

Portas USB

• 3 x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
• 4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

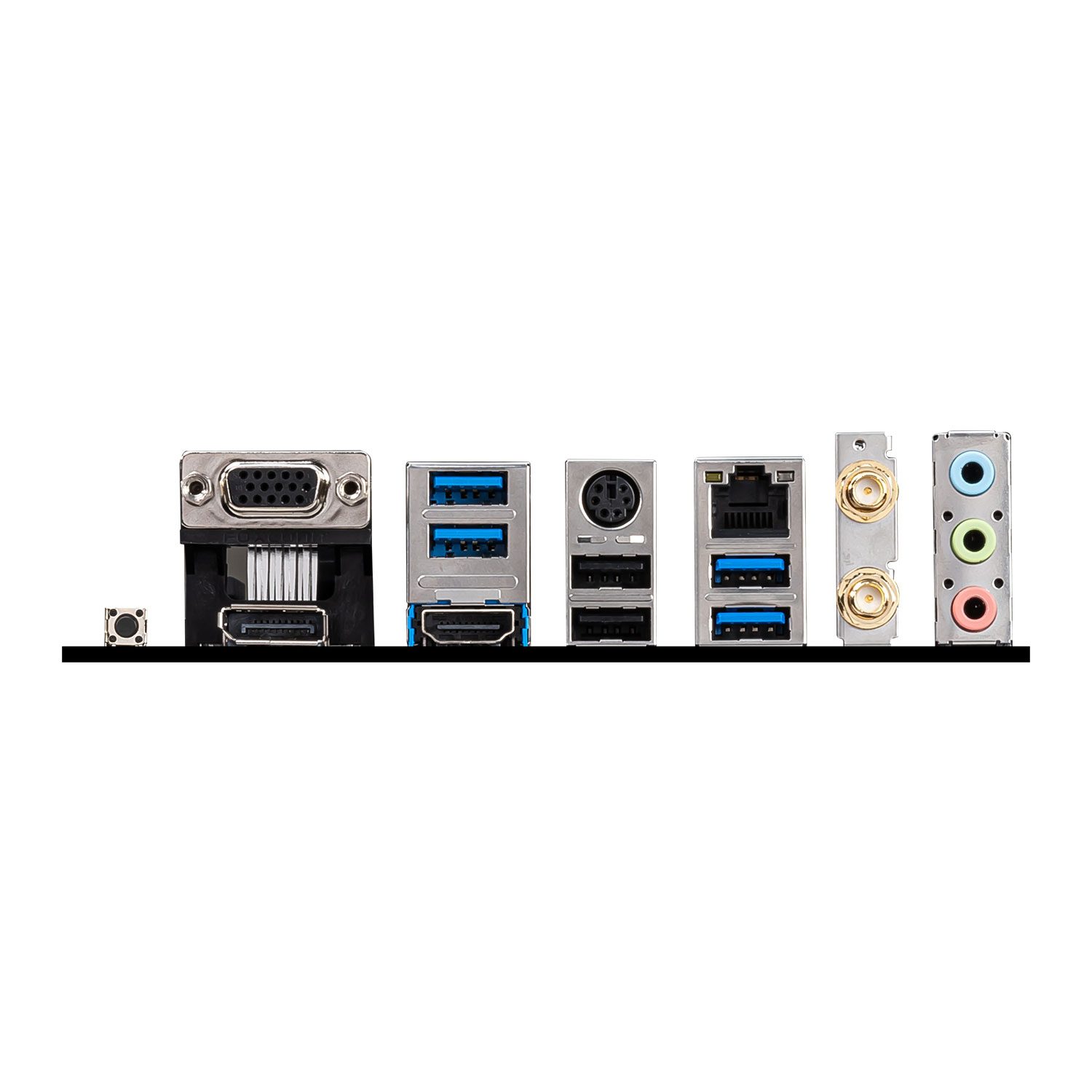

Portas I/O Painel Traseiro

• VGA
• USB 3.2 Gen 1 5Gbps Type-A
• Teclado / Rato
• LAN
• Flash BIOS Button
• DisplayPort
• HDMI
• USB 2.0
• USB 3.2 Gen 1 5Gbps Type-A
• Wi-Fi Antenna connectors
• 3 x Conectores Áudio

Dimensões

• 24.4 cm x 24.4 cm

Formato

• Micro-ATX
